Images may be inaccurate. See specs below to ensure accuracy.
Product Description

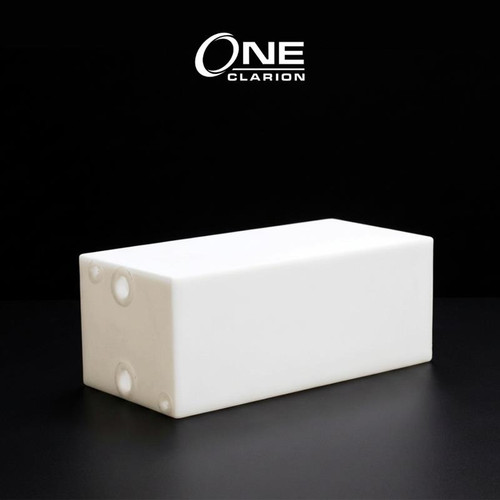

37 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2037-1
The 37 Gallon Trionic Marine & RV Tank | Holding & Fresh Water | WH-2037-1 is designed for boats, RVs, and other mobile applications where a durable, space-efficient tank is required. This rectangular polyethylene tank supports fresh/potable water storage as well as wastewater holding in non-pressurized setups. With a footprint of 51.25" L × 20.5" W × 9.125" H, the WH-2037-1 provides practical capacity while maintaining a low profile for flexible installation.
The tank is manufactured as a seamless, one-piece rotationally molded design with an approximate 3/8" average wall thickness. It is available in pre-drilled and blank configurations. The pre-drilled version includes two 1-1/2" FPT and two 1/2" FPT female NPT threaded openings located on one end, and unused openings can be capped. If your installation requires custom fitting placement, the blank-tank version allows you to choose fitting locations, and the Trionic CF-60 Custom Fittings Kit is recommended for custom routing applications.
FEATURES
-
Product Type: Marine & RV Tank | Holding & Fresh Water
-
Model: Trionic WH-2037-1
-
Capacity: 37 Gallon
-
Tank Shape: Rectangular
-
Usability: Portable
-
Environment: Above Ground
-
Pressurized Use: No
-
ANSI / NSF 61 Approved Resin: Yes
-
Dimensions: 51.25" Length × 20.5" Width × 9.125" Height
-
Material: Polyethylene
-
Color: Natural White
Specifications
KEY SPECIFICATIONS
- Product Type: Marine & RV Tank (Holding & Fresh Water)
- Model: Trionic WH-2037-1
- Capacity: 37 Gallon
- Tank Shape: Rectangular
- Usability: Portable
- Environment: Above Ground
- Pressurized Use: No
- Dimensions: 51.25" Length × 20.5" Width × 9.125" Height
- Material: Polyethylene
- Color: Natural White
- ANSI / NSF 61 Approved Resin: Yes
- Marine Reference: Meets U.S. Coast Guard regulations (as applicable)
- Openings (Pre-Drilled Configuration): (2) 1-1/2" FPT and (2) 1/2" FPT threaded openings (located on one end); unused openings can be capped
- Thread Type: Female NPT (National Pipe Thread)
- Wall Thickness: 3/8" average
- Blank Tank Option: This same tank is available as a blank tank (no threaded openings) for custom fitting placement
- Compatible Accessory: Trionic CF-60 Custom Fittings Kit (recommended for blank-tank / custom routing applications)
- Warranty: 1-year (materials and workmanship)
COMPLIANCE REFERENCES
- NSF/ANSI 61 – Drinking Water System Components (Health Effects)
- FDA – 21 CFR § 177.1520 (Olefin Polymers; Polyethylene Resin Reference)
- USCG – 33 CFR Part 159 (Marine Sanitation Devices)
- NFPA 1192 – Standard on Recreational Vehicles
SHIPPING INFORMATION
- Freight Class: 300
- Liftgate Option: Yes
- Locations: Wisconsin
- Zip Codes: 53021
