Product Description

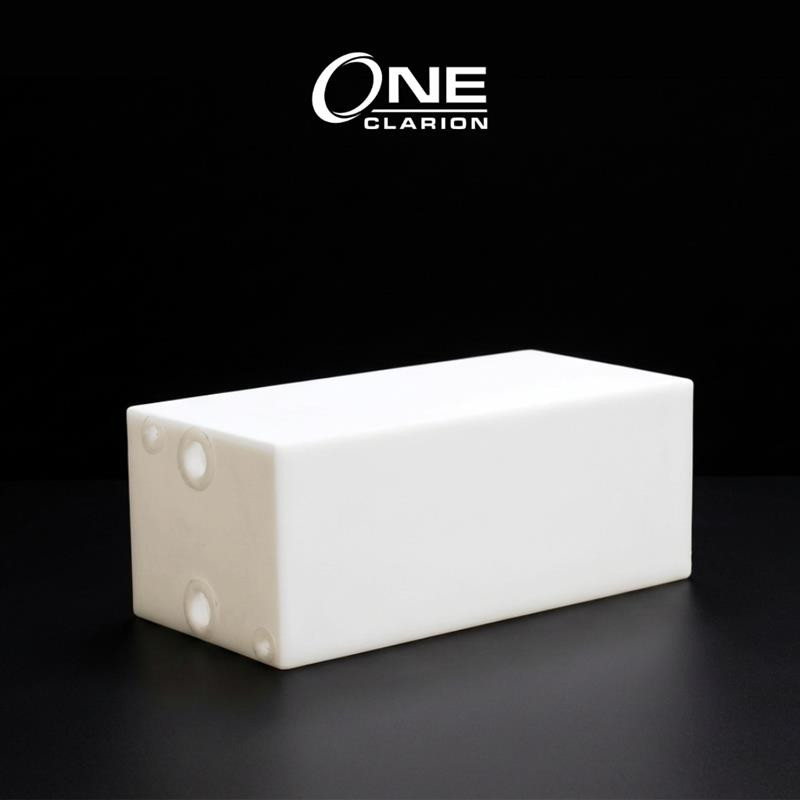

75 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2075
The 75 Gallon Trionic Marine & RV Tank (Holding & Fresh Water) | WH-2075 is designed for boat, RV, and other mobile installations where a durable, space-efficient tank is required. This rectangular polyethylene tank supports fresh/potable water storage as well as wastewater holding (including grey and black water) in non-pressurized setups. With a footprint of 73" L × 28" W × 10" H, the WH-2075 balances high capacity with flexible placement.
This tank is manufactured as a seamless, one-piece rotationally molded tank. It is commonly supplied in a pre-drilled configuration with (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings located on one end (unused openings can be capped). For applications that require custom fitting placement or custom routing, the tank is also available as a blank version (no pre-drilled threaded openings); in those cases, the DIY CF-60 Custom Fittings Kit is the recommended accessory for custom fitting placement and installation guidance. The tank features an approximate 3/8" average wall thickness and should be installed with the bottom fully supported; Trionic also recommends using a minimum 12" flexible hose section to hose barb fittings for installation.
Features
-
Product Type: Marine & RV Tank (Holding & Fresh Water)
-
Model: Trionic WH-2075
-
Capacity: 75 Gallon
-
Tank Shape: Rectangular
-
Usability: Portable
-
Environment: Above Ground
-
Pressurized Use: No
-
Dimensions: 73" Length × 28" Width × 10" Height
-
Material / Color: Linear Low-Density Polyethylene (LLDPE), Natural White
Specifications
KEY SPECIFICATIONS
- Product Type: Marine & RV Tank (Holding & Fresh Water)
- Model: Trionic WH-2075 (pre-drilled) / B-2075 (blank)
- Capacity: 75 Gallon
- Tank Shape: Rectangular
- Usability: Portable
- Environment: Above Ground
- Pressurized Use: No
- Dimensions: 73.125" Length × 28" Width × 10" Height
- Material: Linear Low-Density Polyethylene (LLDPE)
- Color: Natural White
- Wall Thickness: 3/8" average

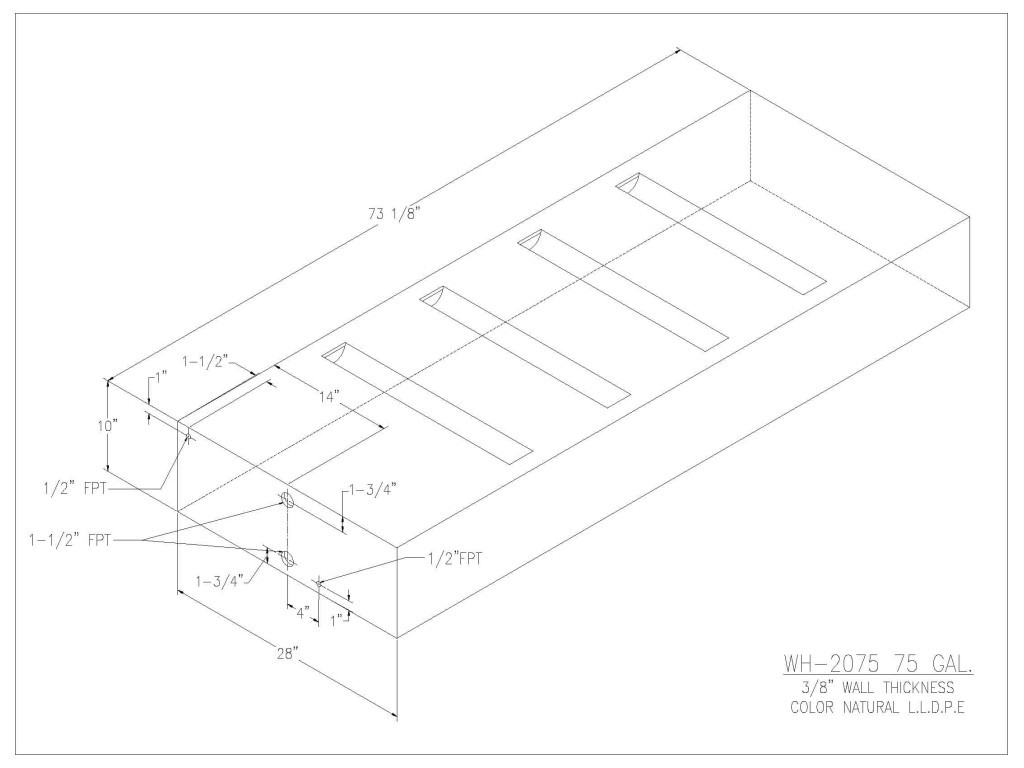

- Fittings: Pre-Drilled: (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings on one end; Blank: no openings
- Compatible Accessory: DIY CF-60 Custom Fittings Kit (for blank tanks)
- Uses: Potable and fresh water storage; grey and black water holding
- Warranty: 1-year (materials and workmanship)
COMPLIANCE REFERENCES
- FDA – 21 CFR § 177.1520 – Trionic states each tank fully complies
- U.S. Coast Guard – Trionic states its tanks meet all U.S. Coast Guard regulations
SHIPPING INFORMATION
- Freight Class: 300
- Liftgate Option: Yes
- Locations: Wisconsin
- Zip Codes: 53021
Custom and Made to Order products are not returnable
