Image of a 75 Gallon Blank Trionic Marine & RV Holding & Fresh Water Tank
Image of a 75 Gallon Pre Drilled Trionic Marine & RV Holding & Fresh Water Tank

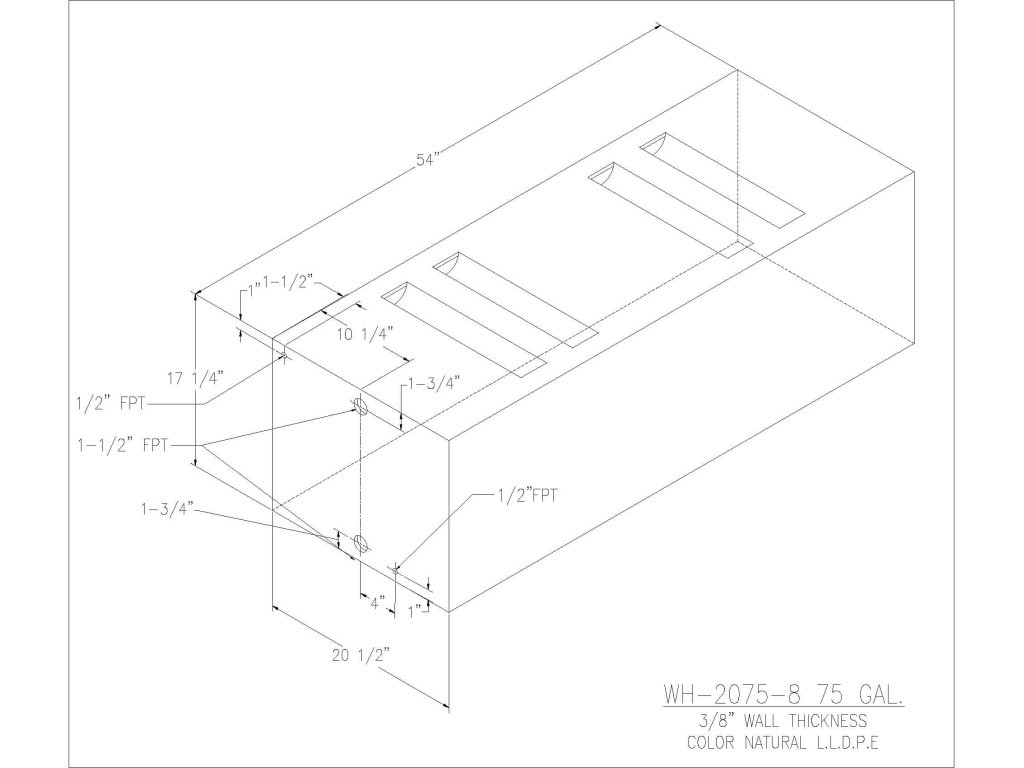

Trionic WH-2075-8 75 gallon tank drawing with dimensions and fitting locations

! Images may be inaccurate. See specs below to ensure accuracy.

75 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2075-8

$536.00
Estimated Lead Time:
4-5 weeks
Capacity (gal):
75
Ships from:
Wisconsin, 53021
Made to Order:
Yes
Material:
Linear Low-Density Polyethylene (LLDPE)

Product Description

75 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2075-8

The 75 Gallon Trionic Marine & RV Tank (Holding & Fresh Water) | WH-2075-8 is designed for boats, RVs, and other mobile applications where a durable, space-efficient tank is required. This rectangular linear low-density polyethylene tank stores fresh and potable water or holds wastewater, including grey and black water, in non-pressurized setups. It measures 54" L × 20.5" W × 17.25" H with a 3/8" average wall.

Fitting options are available to match how your system is plumbed:

  • Pre-Drilled: (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings on one end (unused openings can be capped).

  • Blank: the same tank with no openings (B-2075-8), for custom fitting placement.

For blank-tank installations, the DIY CF-60 Custom Fittings Kit provides the fittings and installation guidance to add openings where your system needs them.

FEATURES

  • Product Type: Marine & RV Tank (Holding & Fresh Water)

  • Model: Trionic WH-2075-8

  • Capacity: 75 Gallon

  • Tank Shape: Rectangular

  • Usability: Portable

  • Environment: Above Ground

  • Pressurized Use: No

  • Dimensions: 54" Length × 20.5" Width × 17.25" Height

  • Material / Color: Linear Low-Density Polyethylene (LLDPE), Natural White

Specifications

KEY SPECIFICATIONS

  • Product Type: Marine & RV Tank (Holding & Fresh Water)
  • Model: Trionic WH-2075-8 (pre-drilled) / B-2075-8 (blank)
  • Capacity: 75 Gallon
  • Tank Shape: Rectangular
  • Usability: Portable
  • Environment: Above Ground
  • Pressurized Use: No
  • Dimensions: 54" Length × 20.5" Width × 17.25" Height
  • Material: Linear Low-Density Polyethylene (LLDPE)
  • Color: Natural White
  • Wall Thickness: 3/8" average
  • Fittings: Pre-Drilled: (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings on one end; Blank: no openings
  • Compatible Accessory: DIY CF-60 Custom Fittings Kit (for blank tanks)
  • Uses: Potable and fresh water storage; grey and black water holding
  • Warranty: 1-year (materials and workmanship)

COMPLIANCE REFERENCES

  • FDA – 21 CFR § 177.1520 – Trionic states each tank fully complies
  • U.S. Coast Guard – Trionic states its tanks meet all U.S. Coast Guard regulations

SHIPPING INFORMATION

  • Freight Class: 300
  • Liftgate Option: Yes
  • Locations: Wisconsin
  • Zip Codes: 53021

Custom and Made to Order products are not returnable

Product Videos

Custom Field

Capacity (gal) 75
Ships from Wisconsin, 53021
Made to Order Yes
Material Linear Low-Density Polyethylene (LLDPE)
