Product Description

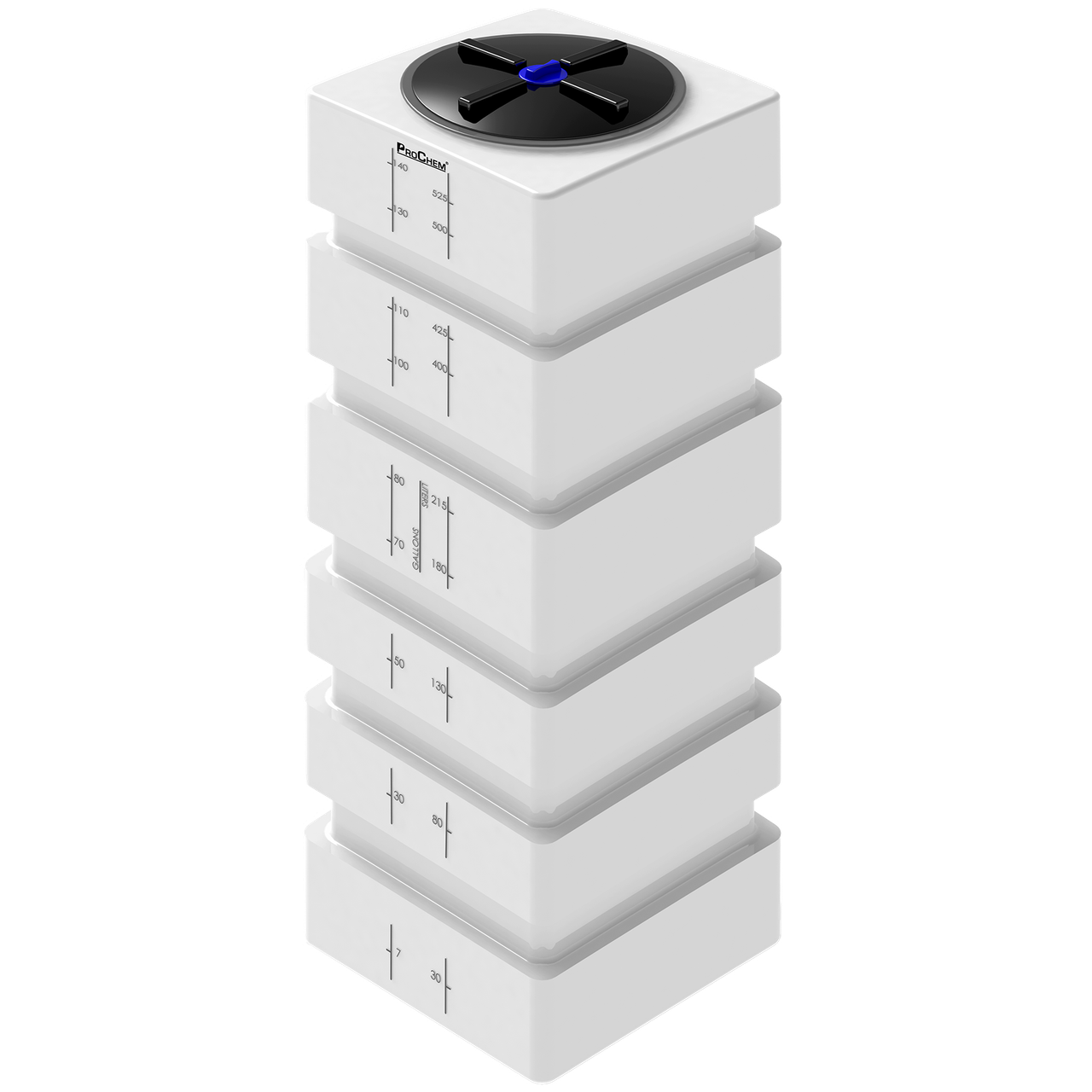

The 140 gallon Peabody ProChem Square Chemical Tank packs its capacity into a square footprint for installations where floor space has run out. A ribbed sidewall holds back the deflection that flat-sided tanks normally show, and a 16 inch threaded twist lid with molded-in calibration is standard.
Measuring 23" L x 23" W x 73" H, this ProChem Square Chemical Tank holds 140 gallons and opens through a 16 in lid.
MATERIAL OPTIONS
- LPE 1.5 — Part No.: 01-33921 (NSF/ANSI 61 certified resin)
- LPE 1.9 — Part No.: 01-34322 (NSF/ANSI 61 certified resin)
- XLPE 1.9 — Part No.: 01-34323 (NSF/ANSI 61 certified resin)
FEATURES
- Ribbed sidewall design reduces the deflection typical of flat-sided tanks
- 16 inch threaded twist lid and molded-in calibration in gallons and litres, standard
- Offered in 1.0 water-weight, 1.5 and 1.9 specific gravity, plus XLPE 1.9
- The XLPE version is NSF/ANSI/CAN 61 certified
- Process fittings at additional cost; polypropylene and polyvinylidene fluoride (PVDF) on request
MATERIAL SELECTION GUIDANCE
Linear polyethylene (LPE) is typically selected for general chemical and water storage; cross-linked polyethylene (XLPE) where greater impact and stress-crack resistance is preferred; polypropylene (PPL) and polyvinylidene fluoride (PVDF) for resin-specific chemistries. Choose based on chemical compatibility first: suitability depends on your specific chemical, its concentration and its temperature, and is the buyer's responsibility to verify before ordering. The specific gravity rating states the heaviest liquid the wall is designed to hold — a 1.5 wall up to about 12.5 lb per gallon, a 1.9 wall up to about 16 lb per gallon.
These are vented, atmospheric storage tanks. Not for pressurized or vacuum service.
CHEMICAL COMPATIBILITY RESOURCES
- Peabody Chemical Resistance Chart (PDF)
- Polyethylene Chemical Resistance Chart (PDF)
- Polypropylene Chemical Resistance Chart (PDF)
- Chemical Compatibility Tool
Compatibility data is published by resin and chemical suppliers as general guidance only. Contact us with your chemical, concentration and temperature before you order.
Specifications
TECHNICAL DRAWINGS & GUIDES
Technical Drawing: View Technical Drawing
KEY SPECIFICATIONS
- Product Type: ProChem Square Chemical Tank
- Tank Shape: Square
- Pressurized Use: No
- Capacity: 140 Gallons
- Dimensions: 23" L x 23" W x 73" H
- Material: LPE 1.5 (01-33921)
- Material: LPE 1.9 (01-34322)
- Material: XLPE 1.9 (01-34323)
- Color: Natural
- ANSI/NSF 61 Approved Resin: Yes
- Manufacturer: Peabody Engineering
- Manufacturer Part Number: 01-33921 / 01-34322 / 01-34323
SHIPPING INFORMATION
- Freight Class: 250
- Locations: Liberty, South Carolina
- Zip Codes: 29657
WARRANTY TERMS
Peabody Engineering warrants this product against defects in material and workmanship for 36 months from the date of shipment, when it is installed, used and maintained as intended. Chemical compatibility, service temperature and liquid specific gravity are the buyer's responsibility: damage from an incompatible chemical, from service above the rated temperature, or from a liquid heavier than the wall rating is not covered.
Custom and Made to Order products are not returnable
