Images may be inaccurate. See specs below to ensure accuracy.
Product Description

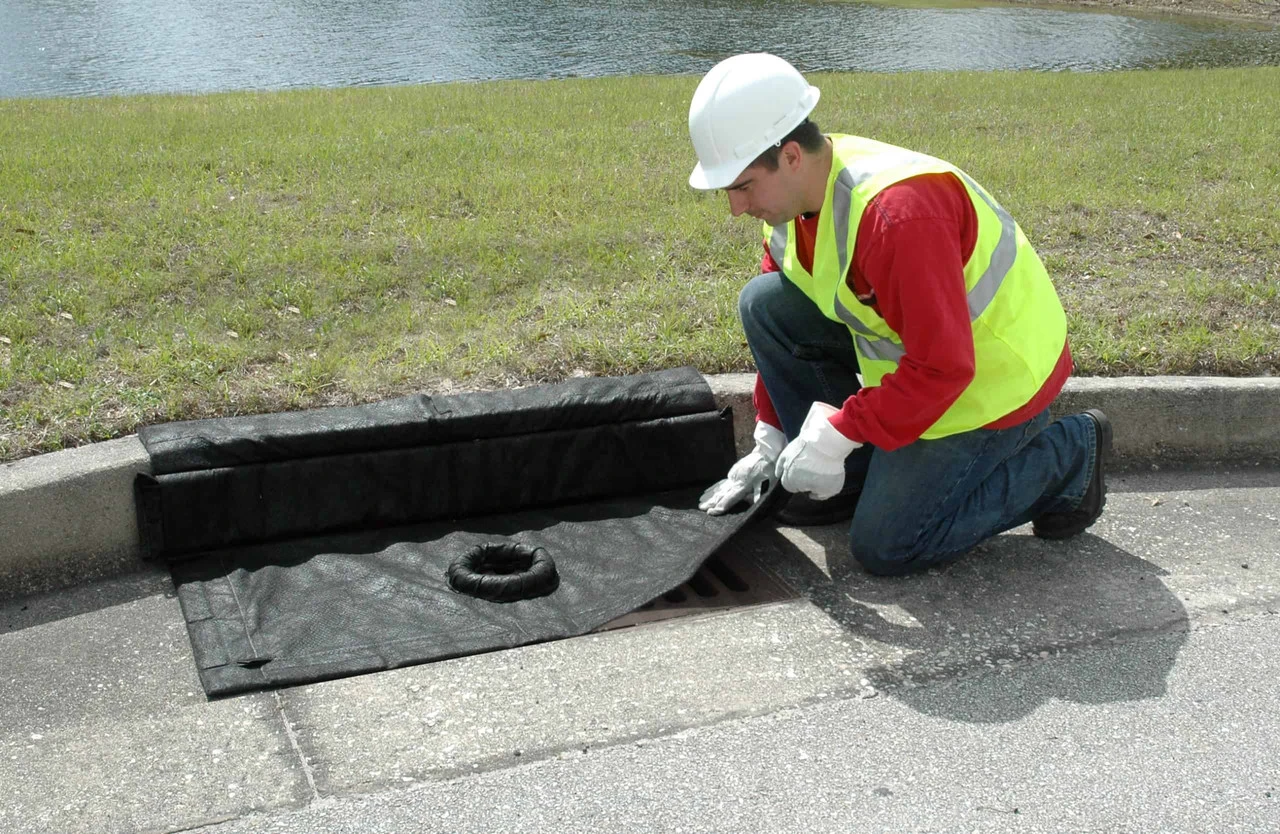

The UltraTech Inlet Guard Plus protects drains and inlets without lifting any grates: built-in magnets hold it in place, and its low profile can be driven over. Standard and curb-style models keep dirt, sediment and debris out of drains.
SIZE OPTIONS
- Standard — 24" x 24" — 5 lb — Part No.: 9160
- Standard — 24" x 36" — 5 lb — Part No.: 9161
- Standard — 24" x 48" — 5 lb — Part No.: 9162
- Curb style — 24" x 24" — 5 lb — Part No.: 9163
- Curb style — 24" x 36" — 5 lb — Part No.: 9164
- Curb style — 24" x 48" — 6 lb — Part No.: 9165
FEATURES
- Keeps dirt, sand, sediment, trash, and debris out of drains
- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates
- Available in several sizes for street drains, combination drains, and trench drains. Custom sizes also available
- Heavy-duty, material (non-woven, polypropylene geotextile) allows up to 92 gal/ft2/min. through drains
- Low-profile design can be driven over and is unobtrusive to traffic and personnel
- Geotextile material helps remove oil and other hydrocarbons from stormwater flow
Specifications
TECHNICAL DRAWINGS & GUIDES
- Inlet Guard Plus Specification (Rev. 07.18.25) (PDF)
- Inlet Guard Plus Instructions (Rev. 07.18.25) (PDF)
KEY SPECIFICATIONS
- Product Type: Inlet Protection
- Model: Ultra-Inlet Guard Plus®
- Material: Non-woven polypropylene geotextile
- Flow Rate: Up to 92 gal/ft²/min
- Product Weight: 5 to 6 lb, by size
- Installation: Built-in magnets, no grate lifting
- Country of Origin: Guatemala
- Manufacturer: UltraTech International, Inc.
- Manufacturer Part Number: 9160 / 9161 / 9162 / 9163 / 9164 / 9165
SHIPPING INFORMATION
- Freight Class: 100 to 175, by size
- Lead Time: most orders ship from UltraTech within 5 business days
WARRANTY TERMS
UltraTech International warrants this product to be free from defects in materials and workmanship on delivery, freight damage excepted. Any defect must be reported within five business days of receipt; UltraTech will repair or replace the product at its discretion.
