Product Description

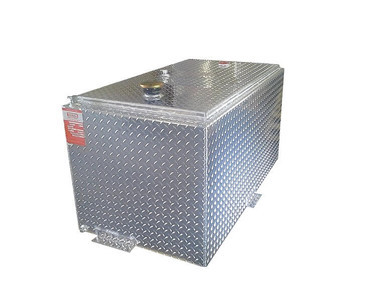

The ATI TTR110DW is a DOT approved 110 gallon double wall aluminum transfer tank for jobsites and fleets that need built in secondary containment. The double wall construction is designed to contain fuel if the inner tank is ever compromised, adding a layer of protection for environmentally sensitive sites and compliance driven operations. Built under a U.S. DOT Special Permit and legal for gasoline, diesel, methanol, kerosene, and aviation fuel.
Two reversible 2" NPT bungs allow flexible fill cap and pump placement, welded internal baffles control fuel movement, and every tank is pressure and leak tested before shipment.
Available in bright diamond plate aluminum or black powder coat finish. Select your finish above.
Key Features
- Special Permit issued by the U.S. Department of Transportation
- Double wall construction for built in secondary containment
- Legal for gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
- Commercial grade lockable vent/prevent filler cap included
- Fully baffled interior to reduce movement of contents
- Two 2" NPT reinforced bungs for superior strength and reversible pump placement
- 3/8" NPT drain fitting
- Hold down brackets included
- Pressure and leak detection tested before shipment
- Made in the USA by Aluminum Tank Industries
It is the user's responsibility to comply with local, state, and federal requirements pertaining to safe transportation, loading, and discharging of tank contents.
Specifications
- Capacity: 110 Gallons
- Style: Rectangle
- Material: Diamond plate aluminum
- Tank Dimensions: 53" L x 26" W x 25" H
- Tank Weight: 158 lbs
- Mounting: Hold down brackets included. Mounting tabs extend out 1 1/2". Add 2 1/2" to overall height for the fill cap.
- Fittings: Two 2" NPT reinforced bungs, 3/8" NPT drain
- Filler Cap: Commercial grade lockable vent/prevent cap included
- Fuel Compatibility: Gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
- Compliance: Built under a Special Permit issued by the U.S. Department of Transportation. Approved for state, commercial, and private use.
- Finish Options: Bright diamond plate aluminum or black powder coat
- Country of Origin: Made in the USA
Shipping Information
- Ship Method: LTL Freight
- Shipping Weight: 202 lbs
- Shipping Carton: 64" x 48" x 34"
- Freight Note: Ships by LTL freight carrier. A liftgate or forklift may be needed at delivery. We will coordinate delivery details with you after your order.
Warranty
This product is covered by a 1 year limited manufacturer warranty from Aluminum Tank Industries, Inc. against defects in materials and workmanship. If an item is found to be defective upon inspection, Aluminum Tank Industries will determine whether to repair or replace it. Damage caused by shipping and handling, improper installation, abuse, or normal wear and tear is not covered. Questions about coverage or a claim? Call us and we will help you coordinate with the manufacturer.
