Product Description

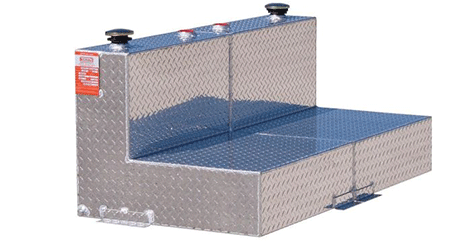

The ATI TTL95S is a DOT approved 95 gallon split aluminum transfer tank with two fully separate compartments of 46 gallons each, so you can haul two different liquids in a single truck bed tank. Run diesel on one side and gasoline on the other, or keep two grades separated for different equipment. Built under a U.S. DOT Special Permit and legal for gasoline, diesel, methanol, kerosene, and aviation fuel.
Each compartment has its own fill point, welded internal baffles keep contents stable, and every tank is pressure and leak tested before it ships.
Available in bright diamond plate aluminum or black powder coat finish. Select your finish above.
Key Features
- Two fully separate compartments for two different liquids
- Special Permit issued by the U.S. Department of Transportation
- Legal for gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
- Commercial grade lockable vent/prevent filler cap included
- Fully baffled interior to reduce movement of contents
- Two 2" NPT reinforced bungs for superior strength and reversible pump placement
- 3/8" NPT drain fitting
- Hold down brackets included
- Pressure and leak detection tested before shipment
- Made in the USA by Aluminum Tank Industries
It is the user's responsibility to comply with local, state, and federal requirements pertaining to safe transportation, loading, and discharging of tank contents.
Specifications
- Capacity: 95 Gallons (46 gallons per compartment)
- Style: L-Shape Split
- Material: Diamond plate aluminum
- Tank Dimensions (per ATI lettered drawing): A 9", B 48 1/2", C 33", D 26", E 11", F 17", G 22"
- Fit Note: Split tank: two separate compartments for transporting two different liquids.
- Tank Weight: 112 lbs
- Mounting: Hold down brackets included. Mounting tabs extend out 1 1/2". Add 2 1/2" to overall height for the fill cap.
- Fittings: Two 2" NPT reinforced bungs, 3/8" NPT drain
- Filler Cap: Commercial grade lockable vent/prevent cap included
- Fuel Compatibility: Gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
- Compliance: Built under a Special Permit issued by the U.S. Department of Transportation. Approved for state, commercial, and private use.
- Finish Options: Bright diamond plate aluminum or black powder coat
- Country of Origin: Made in the USA
Shipping Information
- Ship Method: LTL Freight
- Shipping Weight: 152 lbs
- Shipping Carton: 48" x 40" x 56"
- Freight Note: Ships by LTL freight carrier. A liftgate or forklift may be needed at delivery. We will coordinate delivery details with you after your order.
Warranty
This product is covered by a 1 year limited manufacturer warranty from Aluminum Tank Industries, Inc. against defects in materials and workmanship. If an item is found to be defective upon inspection, Aluminum Tank Industries will determine whether to repair or replace it. Damage caused by shipping and handling, improper installation, abuse, or normal wear and tear is not covered. Questions about coverage or a claim? Call us and we will help you coordinate with the manufacturer.
