Images may be inaccurate. See specs below to ensure accuracy.
Product Description

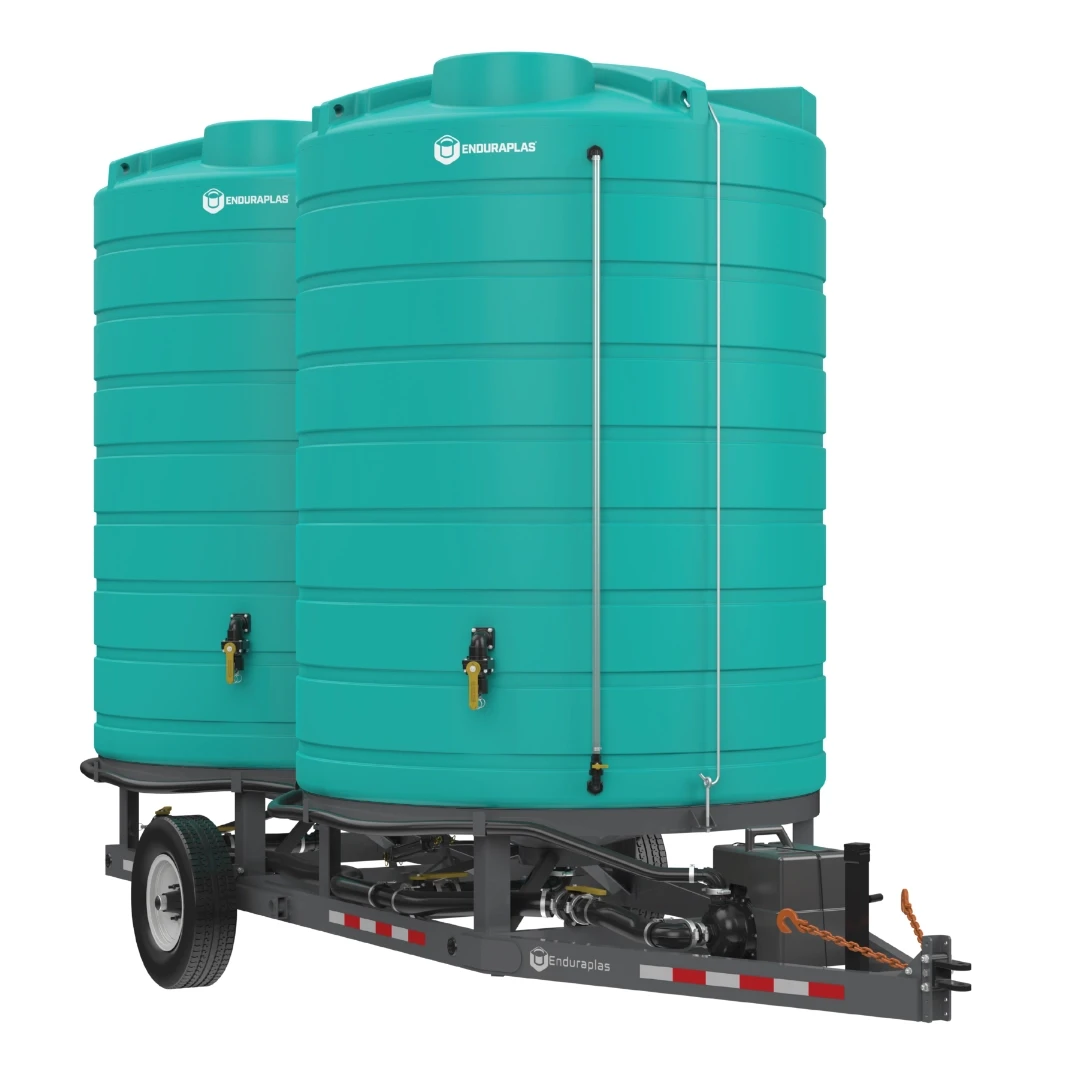

6,000-Gallon Double Cone Relocatable Storage Trailer
This relocatable storage trailer carries two 3,000-gallon cone-bottom tanks (6,000 gallons total) and is built for one job: putting bulk liquid exactly where you need it, then moving it when the job changes. A hand-pumped hydraulic lift lowers the tanks to the ground for stable, gravity-assisted filling and use, then raises them for towing — so the trailer travels empty and low, and works planted firmly on the ground.
The 15-degree conical tanks drain 100%, leaving no residue, and the pump position lets you fully drain the hoses too. The Ribbed-Wall™ tanks and reinforced roofs are built to take repeated relocation and weather.
Choosing your plumbing package
- Complete Plumbing — pump, engine, and manifold installed and ready to transfer.
- Plumbing Prep — trailer and tanks prepped for your own pump and plumbing.
Pump and engine are selectable on Complete units (2" or 3" Banjo® centrifugal pump; Honda® GX160 5.5 HP or GX200 6.5 HP). DOT clearance/stop/turn/tail lighting is available as an option.
Built for
- Temporary bulk water or liquid storage on farms, ranches, and job sites
- Relocatable supply for irrigation, fill stations, and remote operations
- Settling-prone products that need complete drainage
Specifications
| Total capacity | 6,000 gallons (2 x 3,000) |
| Overall dimensions | 21' L x 100" W x 158" H raised / 146" lowered |
| Tanks | Two 15° cone-bottom poly tanks, Ribbed-Wall™, 100% draining |
| Lift | Hand-pumped hydraulic lift system |
| Frame | 6" x 2" rectangular steel tube |
| Axles / suspension | 2 x 3,500 lb spindle |
| Tires & wheels | 235/80 R16 10-ply highway on ag wheel |
| Hitch | 20,000 lb clevis |
| Pump | 2" or 3" Banjo® centrifugal poly (Complete; selectable) |
| Engine | Honda® GX160 5.5 HP or GX200 6.5 HP (Complete) |
| Dry weight | 2,800 lb |
| Lighting | Optional DOT clearance, stop, turn, tail |
| Warranty | 10-year tank warranty |
Standard tank color is black. Images may not reflect exact configuration — refer to specifications above.
Specifications
Technical Drawings & Guides
- Spec Sheet (PDF): Download Spec Sheet
Available Options (configure using the dropdown above)
Plumbing
- Complete Plumbing
- Factory-installed pump-and-plumbing package: Banjo® centrifugal poly pump, Honda® engine, sweep manifold, and discharge hose (see Pump & Plumbing below for selectable sizes).
- Plumbing Prep
- Tank, trailer, and chassis prepped to accept plumbing; the pump-and-plumbing package above is not installed.
Key Specifications
Tank & Capacity
- Configuration
- Two (2) poly cone-bottom tanks
- Total Capacity
- 6,000 gal (2 × 3,000 gal)
- Tank Material
- Polyethylene
- Tank Design
- Cone bottom, 100% draining; ribbed walls; reinforced roofs
- Part / Model #
- WC6000
Trailer & Chassis
- Overall Length
- 21 ft (252")
- Width
- 100"
- Height
- 158" raised / 146" lowered
- Frame
- 6" × 2" rectangle tubing
- Hitch
- 20,000 lb clevis
- Empty / Dry Weight
- 2,800 lbs
Running Gear
- Axles
- 2 × 3,500 lb spindle
- Tires
- 235/80 R16, 10-ply highway tire on ag wheel
Pump & Plumbing (selectable)
- Pump
- 2" or 3" Banjo centrifugal poly
- Engine
- Honda GX160 (5.5 HP) or GX200 (6.5 HP)
- Feed / Discharge
- 3" feed / 2" or 3" discharge Banjo sweep manifold
- Hose
- Selectable 2" or 3"
Electrical & Compliance
- Standard
- 7-pole RV plug
- Optional
- DOT-compliant clearance, stop, turn & tail lights
Operation
- Lift System
- Hand-pumped hydraulic lift
- Fill Method
- Towed empty and lowered to the ground for filling
Relocatable design: this trailer is transported empty and lowered to grade before filling. It is not intended to be towed while full.
